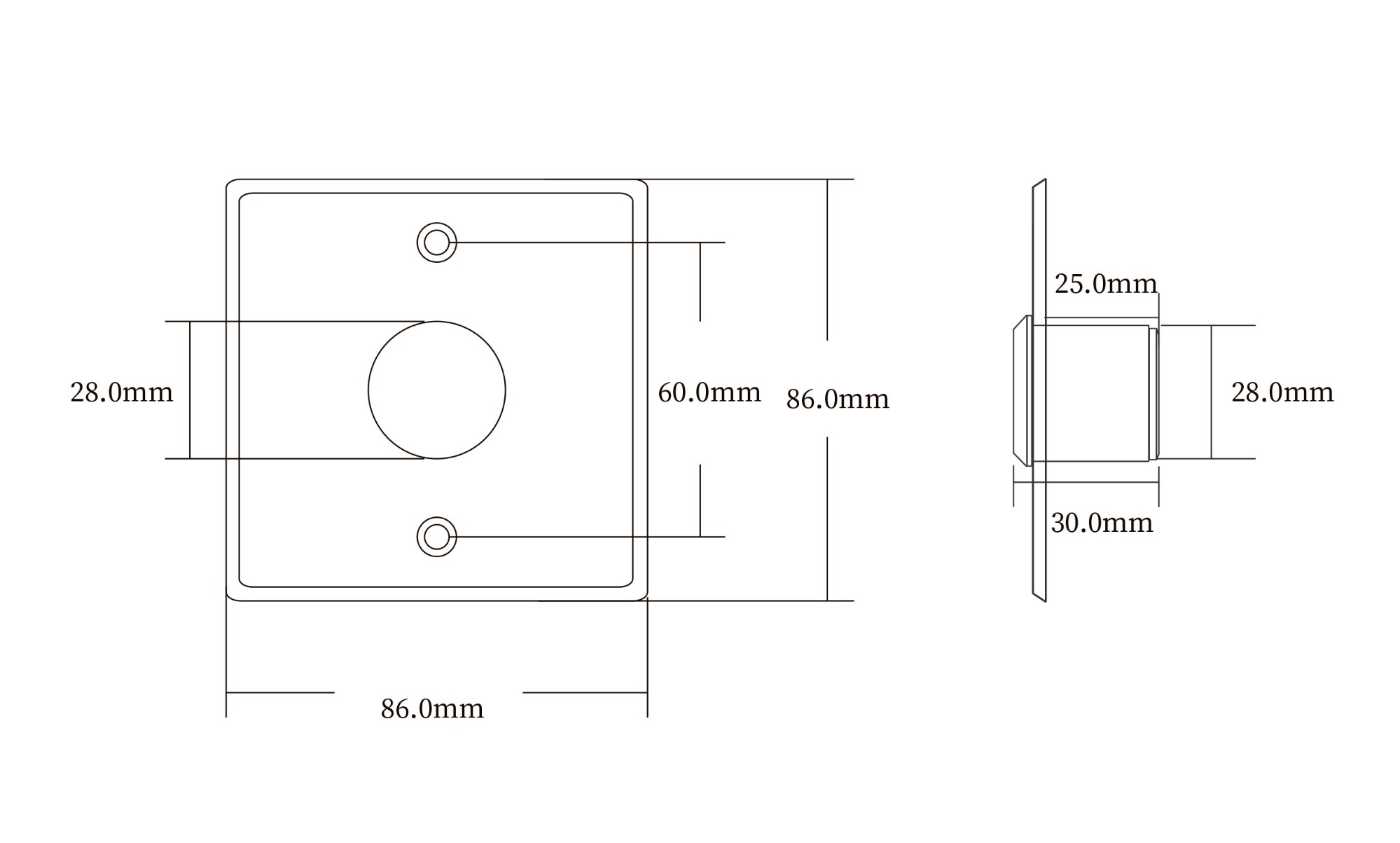

Dimensions: 86L*86W*25H(mm)
Contact Rating: 3A/12-24V
Power: 12-24VDC

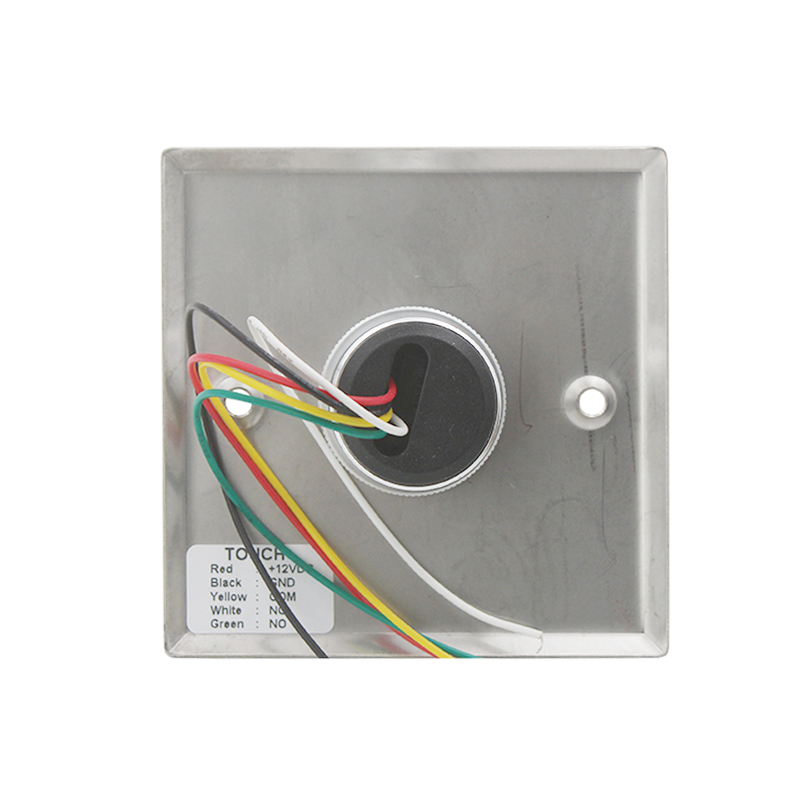

Output Contact: NO/NC/COM
Mechanical Life:100,000 Tested
Logo: Customizable
Suitable For Door: Hollow Door
Weight: 0.074kg
Operating Temp: -20°C~+55°C(14-131F)
Operating Humidity: 0-95%(relative humidity)
LED Indicator: Blue (Standby) Green (Activated)
Surface Mount: Optional M86 Metal Back Box
Panel: 0.9mm Thick 304 Stainless Steel (Wire Drawing)
Package Quantity: 100PCS/51*46*29cm/ctn
